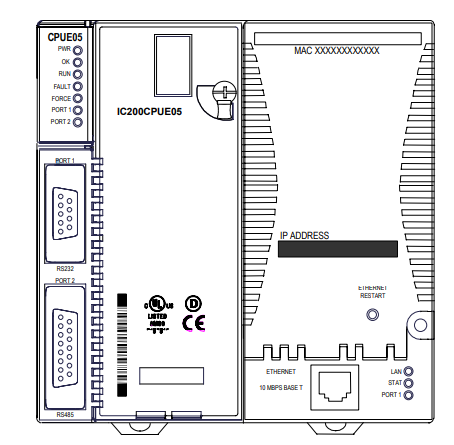

General Electric IC200CPUE05 CPU Controller Module

General Electric IC200CPUE05 CPU Controller Module

Features
Supports up to 64 modules with up to 2048 I/O points
Can be either autoconfigured or configured from a programmer using configuration software
64KB of configurable memory for the application program, hardware configuration, registers (%R), analog inputs (%AI), and analog outputs (%AQ)
Programming in Ladder Diagram and Instruction List
Non-volatile flash memory for program storage
Battery backup for program, data, and time of day clock
Super capacitor provides power to memory for 1 hour
Over 1 hour, backup battery protects memory contents up to 6 months.
Backup battery has shelf life of 5 years when not in use.
Run/Stop switch
Floating point (real) data functions
Embedded RS-232, RS-485, and Ethernet communications
Supports EZ Program Store device
70mm height when mounted on DIN rail with power supply (sold separately)
